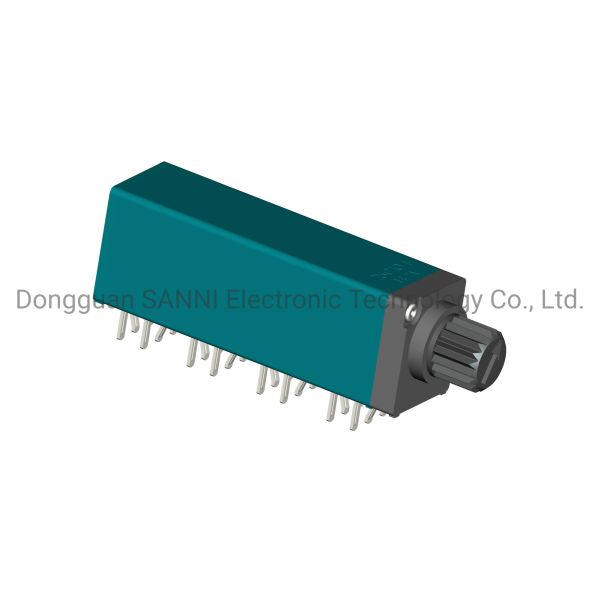

Eight Unit Rotary Horizontal Potentiometer Shaft Sealed RV97P0F0

Name: Eight Unit Rotary Horizontal Potentiometer Shaft Sealed RV97P0F0
Brand: SANNI
Price: 0.8 USD

China Eight Unit Rotary Horizontal Potentiometer Shaft Sealed RV97P0F0 wholesale

Place of Origin : China

Brand Name : SANNI

MOQ : 2000PCS

Packaging Details : 2000PCS/BOX

Delivery Time : 25 Working days

Payment Terms : T/T

Supply Ability : 30000pcs/Month

Model Number : RV97P0F0

Price : USD0.8~1.2 per pc

Shape : Square

Resistance Taper : Log or Linear

Mount Direction : Horizontal

Specification : 9mm

Installation : DIP PCB Mount

Base Material : PC or ABS

Customization : Available | Customized Request

Contact Now

RV97P0F0 Rotary Potentiometer Eight Unit Shaft Sealed Potentiometer

Product Description

9mm Insulated shaft sealed potentiometer
Width: 9.5mm
Use:Used for car amplifier, audio amplifier, musical instrument amplifier, guitar effector, mixer, instrument and equipment

Product Features

Rohs compliant
Seal type
Small volume
Structural diversification
High Quality

Product Specification

1.Electrical Characteristics
Total resistance	100Ω-3MΩ
Total resistance tolerance	50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance	R≤10KΩ: 10ΩMax./10KΩ<R>100KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power	0.05W
Insulation resistance	100MΩ min. 250V DC
Voltage proof	300V AC for 1 minute
Maximum operation voltage	50V AC/10V DC
Gang error applicable for Dual unit parts for audio volume control purposes	-40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
2.Mechanical Characteristics
Rotation stopper strength	Min:4Kgf
Total rotation angle	300^o±5^o
Totational torque	10-150gf.cm CC: click torque: 60-400gf.cm
Key push-pull strength	Min:8Kgf
Key Wobble	Max: 0.6*L/20mm P-P
Terminal Strength	5N for 1 minute
3.Environmental Performance
Cold	-40^oC±2^oC for 96H
Dry heat	85^oC±2^oC for 96H
Damp heat	-40^oC±2^oC ,90 to 95%RH for 96H
4.Welding heat reference
Hand Soldering	350^oC±10^oC/3+1S
Dip Soldering	260^oC±5^oC/10±1S

Our Advantage

1. More than 10 years of experience in research and development production design.

2. 4 automation production lines, more than 100 experienced workers for higher precision products.

3. 10+ dedicated and experienced engineers and designers in R&D department.

4. Support ODM/OEM customized service. Help customers quickly design their ideas into mass production solutions, and complete prototype design, development and verification.

5. Professional Testing instruments and team to ensure product quality.

Eight Unit Rotary Horizontal Potentiometer Shaft Sealed RV97P0F0
